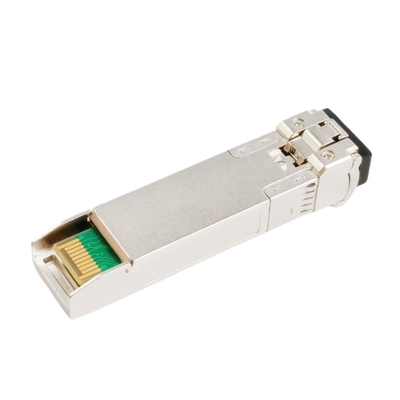

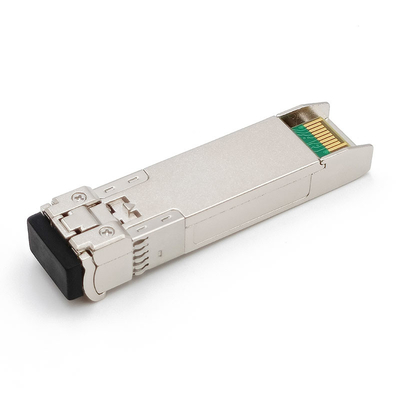

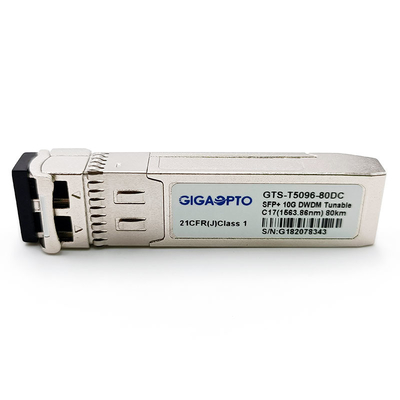

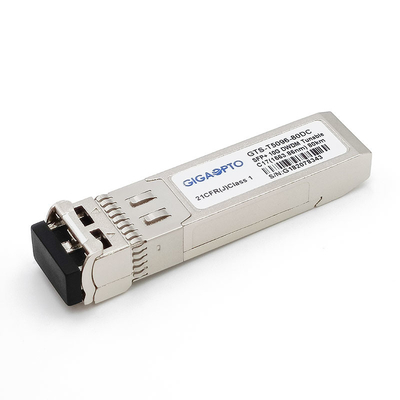

Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM

Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM
Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM

Large Image :  Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-T5096-80DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 5,000pcs/month

Tunable 50GHz Step 10G DWDM C-band SFP+ SMF Transceiver 80km 1563.86nm-1528.77nm LC DOM

Description
Product Name: 10G DWDM ZR Tunable Form Type: SFP+ DWDM
Channels: 50GHz C17-C61, Total 89 Optical Components: C-band Tunable DWDM Laser/APD
Cable Length: 80km Power Budget (dB): 21dB
DOM: Supported Keywords: 10G DWDM C-band Tunable SFP+ 50GHz 80km Module

Cisco/Juniper/Arista Compatible 10G DWDM C-band Tunable SFP+ 50GHz 80km Module SMF 1563.86nm-1528.77nm 80km LC DOM





Product Description



This 10G DWDM C-band Tunable Transceiver supports up to 80km link lengths over G.652 single mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432, SFF-8690 and ITU-T G.698.1 standard with 50 GHz channel spacing for SONET OC-192, SDH STM-64, DWDM 10GBASE-ZR Ethernet and DWDM 10G Fiber Channel applications.

The tunable SFP+ transceiver provides a full C-band window covering 1528nm to 1568nm for DWDM optical networks, which meets the need for the rapid increase in the volume of communication traffic from telecom carrier and operator. It can replace the fixed DWDM channel SFP+ transceivers that are currently used while reducing the large stock since all wavelengths can now be covered with one transceiver module.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be deployed in the DWDM networking equipment in metropolitan access and core networks.





Functional Specification



Product Type DWDM SFP10G Tunable Max Data Rate (Gbps) 10.312Gbps
Channels 50GHz C17-C61, total 89 Cable Link Length 80km @ G.652
Interface Duplex LC Cable Type Single mode fiber
Laser ILMZ Receiver APD
Voltage Supply 3.3V Power Consumption <1.6 W
Average Launched Power (dBm) -1 ~ 3dBm Receiver Sensitivity <-22 dBm
Extinction Ratio >9 dB Overload > -7.0 dBm
Power-budget (dB) 21 dB DDM Supported
Modulation Format NRZ TRANSMIT AND DISPERSION PENALTY 1.5 dB
Dispersion Tolerance -400 ps/nm to 1,450 ps/nm Environment Operating: 0°C to 70°C
Warranty 3-Year Storage: -40°C to 85°C
DOM Supported OEM/ODM Supported
Protocols 10G Ethernet, 10G FC



Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.

Distance ≤ 10km ≤ 30km ≤ 50km
Attenuator 12dB 10dB 5dB





Features



  • Electrical interface specifications per SFF-8431
  • Management interface specifications per SFF-8431 and SFF-8472
  • SFP+ MSA package with duplex LC connector
  • 80KM MZM Tunable Transmitter
  • Up to 11.3Gb/s bi-directional data links
  • 50GHz ITU-based channel spacing(C-Band) with a wavelength locker
  • Single +3.3V power supply
  • Class 1 laser safety certified
  • Operating temperature options:0 - +70oC
  • Up to 80km on 9/125μm SMF
  • RoHS Compliant



Application



  • DWDM 10GBASE-ZR/ZW 10Gb/s Ethernet
  • DWDM 10Gb/s Fiber Channel
  • DWDM SONET OC-192&SDH STM-64
  • Wide, local, and storage area networks
