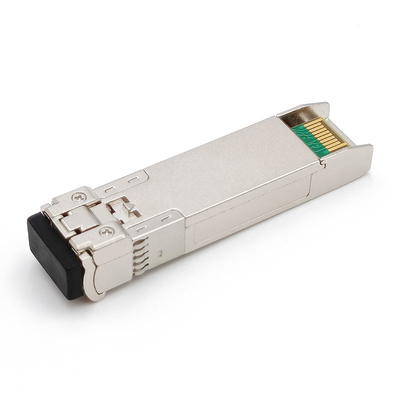

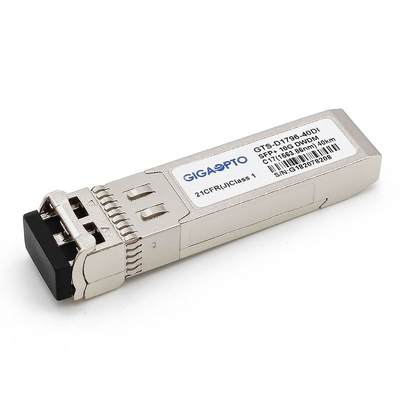

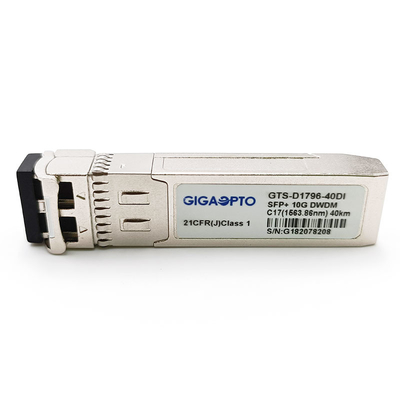

C17-C61 DWDM 100GHz SFP+ ER 40km Single Mode Fiber Transceiver LC DOM Industrial

100GHz ITU Grid C Band C17-C61 DWDM SFP+ ER 40km Optical Transceiver Module SMF LC DOM Industrial

Products Description of 10G SFP+ DWDM ER 40km (C17~C61)CH Series

This hot pluggable 10GE DWDM SFP+ ER Transceiver provides high capacity, high bandwidth communication solutions for multiplexed optical networks. This DWDM SFP+ transceiver module is designed for 10GBASE-ER, and 2G/4G/8G/10G Fiber- Channel applications. Max links up to 40km over G.652 single mode fiber.

It features a high-performance DWDM EML transmitter and PIN diode into a duplex LC optical connector. All modules satisfy class I laser safety requirements.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

With high quality components, this DWDM SFP+ Module is able to work under the temperature from -40 to 85°C (-40 to 185°F), suitable to be deployed in the DWDM networking equipment in metropolitan access for both indoor and outdoor environment.

Functional Specification

Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.

Ordering Information

Features

• Hot-Pluggable SFP+ Footprint
• Compliant with SFF-8431,SFF-8432 and IEE802.3ae
• 10GBASE-ER, and 2G/4G/8G/10G Fiber Channel applications
• Suitable for use in 100GHz channel spacing DWDM systems
• C-band C18-C61 (100GHz spacing) Cooled EML transmitter and PIN receiver
• Max link length up to 40km on 9/125µm SMF with duplex LC connector
• Low Power Dissipation < 1.8W
• Operating Case Temperature:-40 to 85°C (-40 to 185°F)
• Single 3.3V power supply
• Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power
• RoHS6 compliant and lead-free

Application

• 10GBASE-ER/EW
• 10G Fiber Channel
• OBSAI rates 6.144 Gb/s, 3.072 Gb/s,1.536 Gb/s, 0.768Gb/s
• CPRI rates 9.830 Gb/s, 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s,1.229 Gb/s, 0.614Gb/s
• Other optical links

Compatibility

All of Gigaopto's 10G SFP+ DWDM ER 40km Industrial Transceivers are open sourced, and can be coded to be fully compatible with mainstream devices, please refer to the following form ( for example in C17/1563.86nm Wavelength channel). For more product compatibility, please feel free to contact us.
