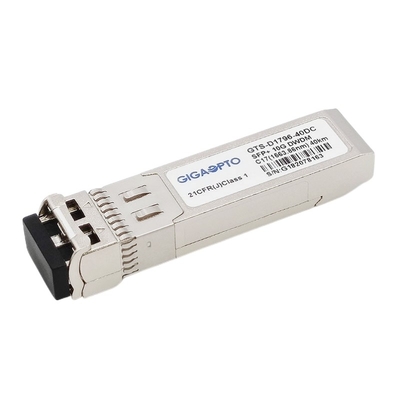

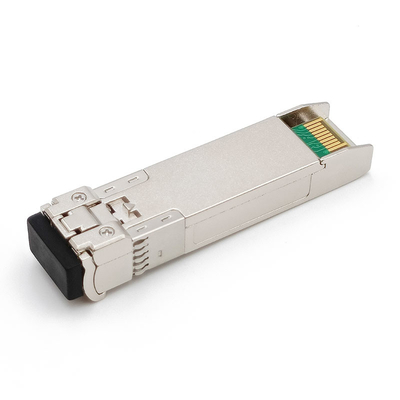

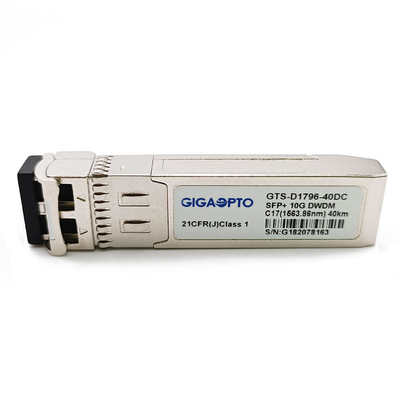

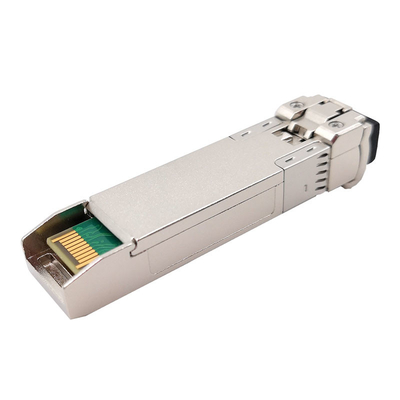

100GHz ITU Grid C Band C17-C61 DWDM SFP+ ER 40km Optical Transceiver Module SMF LC DOM

10GE/10GFC DWDM SFP+ ER 100GHz C Band C17-C61 40km Optical Transceiver Module SMF LC DOM

Products Description of 10G SFP+ DWDM ER 40km (C17~C61) Series

Gigaopto’s 10G 100GHz C Band DWDM SFP+ series optic transceiver is a small form factor hot pluggable module for duplex optical data communications. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528nm to 1566nm as specified by the ITU-T. Its max transmission can reach up to 40km over dual-strand single mode fiber.

This DWDM 10G ER Transceiver is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.

It features a high-performance DWDM EML transmitter and PIN diode into a duplex LC optical connector. All modules satisfy class I laser safety requirements.

Digital diagnostics functions are available through an I2C interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Functional Specification

Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.

Ordering Information

Features

• Hot-Pluggable SFP+ Footprint
• Compliant with SFF-8431, SFF-8432 and IEE802.3ae
• 10GBASE-ER, and 2G/4G/8G/10G Fiber Channel applications
• Suitable for use in 100GHz channel spacing DWDM systems
• C-band C18-C61 (100GHz spacing) Cooled EML transmitter and PIN receiver
• Max link length up to 40km on 9/125µm SMF with duplex LC connector
• Low Power Dissipation < 1.5W
• 0ºC to 70ºC Operating Case Temperature
• Single 3.3V power supply
• Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power
• RoHS6 compliant and lead-free

Application

• 10GBASE-ER/10GBASE-EW DWDM Ethernet
• 10G Fiber Channel
• 10GE Data Center Switches and Routers
• 10GE Network interface cards and Fiber Media Converters
• Other DWDM optical networks

Compatibility

All of Gigaopto's 10G SFP+ DWDM ER 40km Transceivers are open sourced and can be coded to be fully compatible with mainstream devices, please refer to the following form ( for example in C17/1563.86nm Wavelength channel). For more product compatibility, please feel free to contact us.
