Product Details:
|
| Product Name: | 10GBASE-BX10-D | Form Factor: | SFP+ BiDi |
|---|---|---|---|
| Speed (Gbps): | 10Gbps | Wavelength: | 1330nm-TX/1270nm-RX |
| Interface: | Simplex-LC | Max Reach: | 10km |
| DDMI: | Supported | Warranty: | 3 Years |
| Keywords: | 10GBASE-BX10-U, 10G SFP+ BiDi 10km | ||
| Highlight: | Bi Directional SFP+ Optical Transceiver,DDMI SFP+ Optical Transceiver,SFP+ BiDi |
||

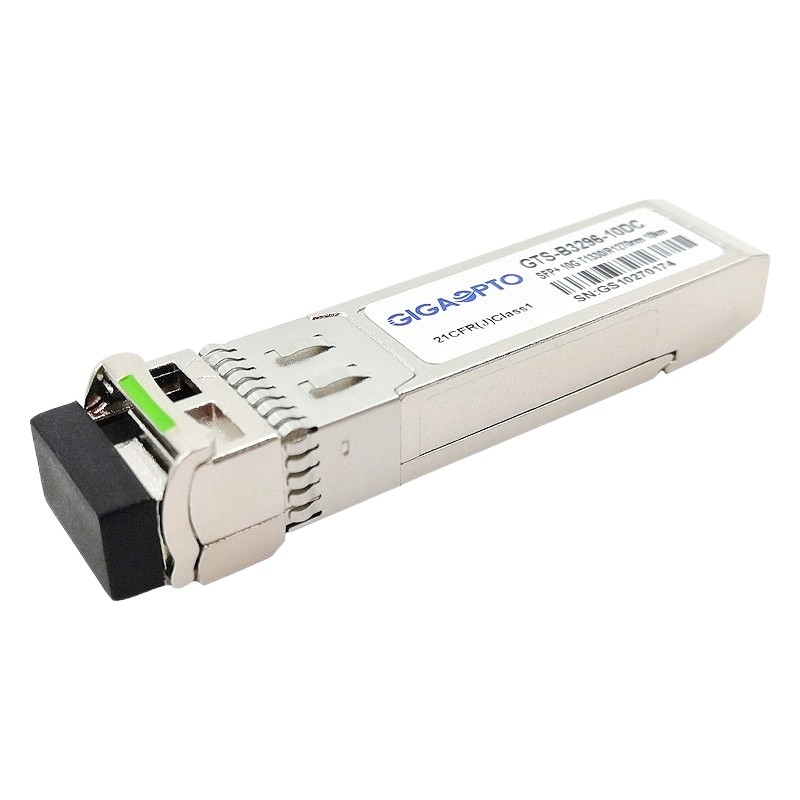

SFP+ BiDi 1330nm-TX/1270nm-RX 10km Optical Transceiver Module DDMI Supported
Description
Gigaopto’s GTS-B3296-10DC features a multiple quantum well DFB transmitter, which is class1 laser compliant according to International Safety Standard IEC-60825, and 1270nm PIN photo-detector into simplex LC connector,designed to transmit and receive serial optical data over OS2 SMF with 10km distance.

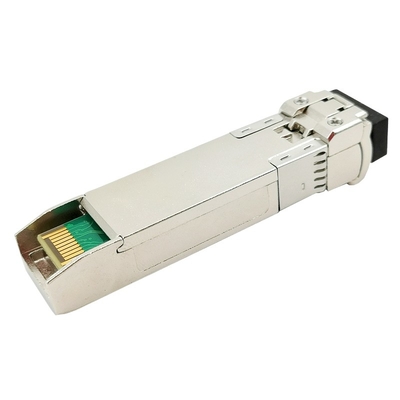

It is with the SFP+ 20-pin connector to allow hotplug capability.
This 10GBASE-BX10-U SFP WDM BiDi transceiver is compliant with SFF-8431,SFF-8432 and the IEEE 802.3ae standard.
Digital diagnostic functions are available via a 2-wire serial interface, as specified in SFF-8472.
Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Specification
| Form Factor | SFP+ BiDi | Speed (Gbps) | 10Gbps |
| Wavelength (TX/RX) | 1330nm_TX/1270nm_RX | Max Reach | 10km |
| Interface | LC Simplex | Cable Type | Single mode fiber |
| Transmitter Type | DFB Laser | Receiver Type | PIN photo-detector |
| TX Power | -5~0dBm | Receiver Sensitivity | < -14.4dBm |
| Power Budget | 9.4dB | RX Overload | >0.5dBm |
| Power Dissipation | ≤1W | Extinction Ratio | >3.5dB |
| Digital Diagnostic Monitoring | Supported | Operating Temperature | 0 to 70°C |
| Warranty | 3 years | OEM/ODM | Supported |
| Protocols | IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI | ||
Features
Application
Standard
Electrical and Optical Characteristics
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Total Supply Current | ICC | 300 | mA | |||
| Transmitter | ||||||
| Transmitter Differential Input Voltage | 180 | 1200 | mV | |||
| Tx_Fault Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| Tx_Fault Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Tx_Disable Input Voltage - High | VIH | 2 | Vcc | V | LVTTL | |
| Tx_Disable Input Voltage - Low | VIL | 0 | 0.8 | V | LVTTL | |
| Input Differential Impedance | ZIN | 85 | 100 | 115 | Ω | |
| Receiver | ||||||
| Receiver Differential Output Voltage | 300 | 850 | mV | |||
| LOS Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| LOS Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Output Differential Impedance | ZOUT | 90 | 100 | 110 | Ω | |
| Optical Transmitter Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Average Output Power | POUT | -5 | 0 | dBm | ||
| Center Wavelength | λc | 1320 | 1330 | 1340 | nm | GTS-B3296-10Dx |
| 1260 | 1270 | 1280 | GTS-B2396-10Dx | |||
| Spectral Width (-20dB) | ∆λ | 1 | nm | |||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Optical Return Loss | 12 | dB | ||||
| Transmitter and Dispersion Penalty | TDP | 3.2 | dB | |||
| Transmitter OFF Power | POFF | -45 | dBm | |||
| Output Eye Diagram | Complies with IEEE802.3ae | |||||
| Optical Receiver Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Center Wavelength | λc | 1320 | 1340 | nm | GTS-B2396-10Dx | |
| 1260 | 1280 | GTS-B3296-10Dx | ||||
| Receiver Sensitivity | PSEN | -14.4 | dBm | Note 1 | ||
| Input Saturation Power (Overload) | PSAT | 0.5 | dBm | |||
| Receiver Reflectance | -12 | dB | ||||
| LOS De-assert Level | LOSD | -17 | dBm | |||
| LOS Assert Level | LOSA | -30 | dBm | |||
| LOS hysteresis | HYS | 0.5 | 6 | dB | ||
Note 1. Measured with a PRBS 231-1 test pattern, @10.3125Gbps, ER=4dB, BER<10-12
Compatibility
Gigaopto's optical transceivers are 100% compatible with all major switch brands and will not cause damage to OEM devices.
In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to customers.
For this GTS-B3296-10DC compatibility, please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-B3296-10DC | Juniper | EX-SFP-10GE-BX32 |
| Cisco | SFP-10G-BXD | Brocade | SFP-10G-BXD |
| Dell | GP-SFP-10GBX-D-10 | HW | SFP-10G-BXD1 |
| Ciena | 12716 | Extreme | 10GB-BX10-D |
