Product Details:
|
| Product Name: | 10GBASE-ER-I | Packaging: | SFP+ |
|---|---|---|---|
| Wavelength: | 1550nm | Transmission: | 40km On SMF |
| Operating Temperature: | -40 To 85°C Industrial | Connector: | LC Duplex Receptacle |
| Optical Budget: | 15dB | OEM/ODM: | Supported |
| Keywords: | SFP+ 10GBASE-ER-I, SFP-10G-ER-I 40KM | ||
| Highlight: | SFP+ Single Mode Fiber Module,1550nm Single Mode Fiber Transceiver,40km Fiber Transceiver Module |
||

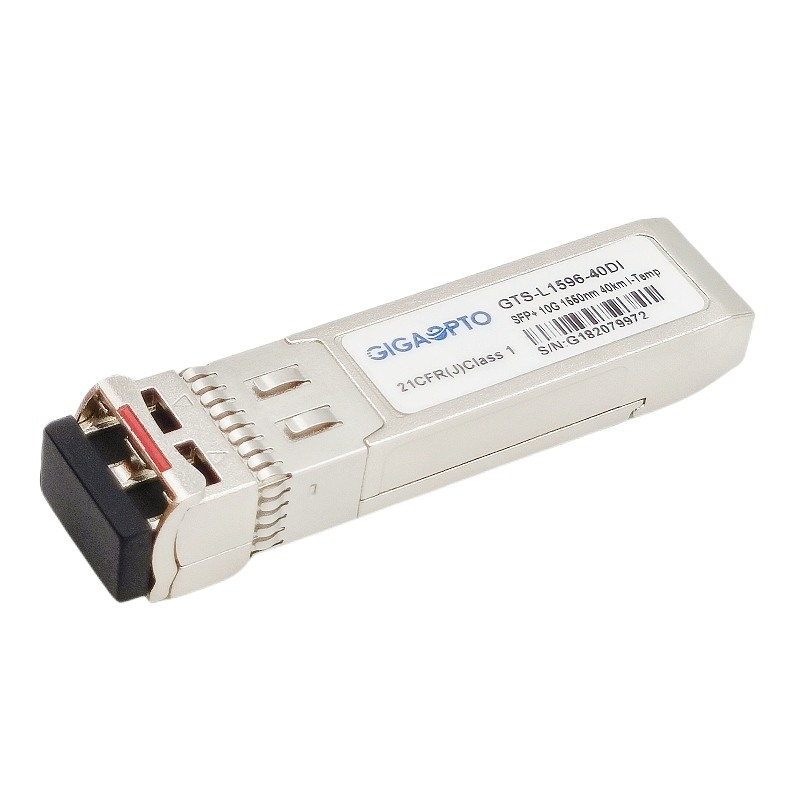

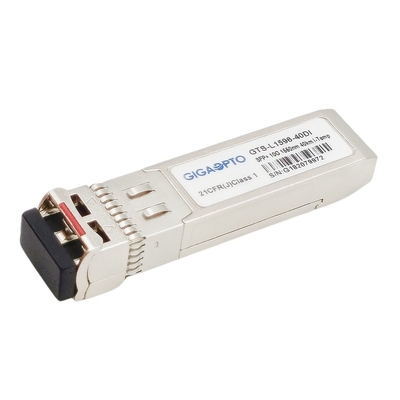

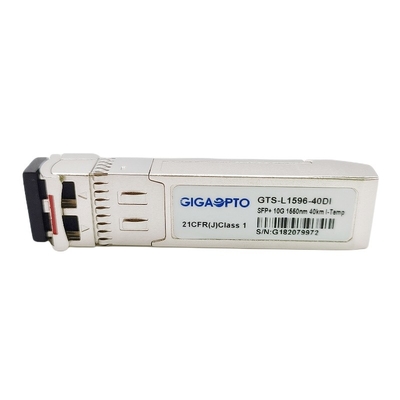

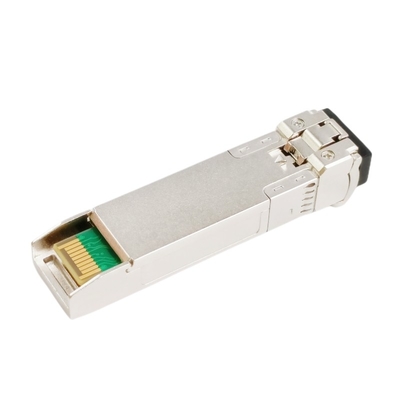

SFP+ 10G ER 40km 1550nm EML+PIN Industrial -40 to 85°C
Description
Gigaopto’s GTS-L1596-40DI is a high performance, cost effective module, which supports Multi Rate 9.95 to 10.5Gbps, and transmission distance up to 40km on stand single mode fiber.
The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. All module satisfy class 1 laser safety.
It is compliant with the SFF-8431,SFF-8432,10GFC,ITU-T G.691,10GBASE-ER/EW and IEEE 802.3ae.
Digital diagnostic monitoring(DDM/DOM) is available via a 2-wire serial interface, as specified in SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
The 10G ER-I transceiver is used in industrial operating temperature range of -40°C to 85°C and can work in harsh industrial environments, such as telecommunication, data processing and management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.
Specification
| Form Factor | SFP+ | Bit Category | 10Gb/s |
| Wavelength | 1550nm | Max Link Reach | 40km |
| Connector Type | Duplex-LC receptacle | Fiber Type | SMF |
| LD Type | EML Laser | PD Type | PIN |
| Transmitter Output Power | -1~+3dBm | RX Sensitivity | < -16dBm |
| Power-budget | 15dB | Extinction Ratio | >8.2dB |
| Power Consumption | ≤1.5W | RX Overload | >0.5dBm |
| Digital Diagnostic Support | Yes | Temperature Range | -40 to 85°C (-40 to 185°F) |
| OEM/ODM | Supported | Warranty | 3 years |
| Protocols | SFF-8472, SFF-8431, SFF-8432, 10GFC Rev 4.0, 10GBASE-ER | ||
Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.
| Distance | ≤ 5km | ≤ 10km | ≤ 20km |
| Attenuator | 7dB | 5dB | 3dB |
Features
Application
Compatibility
All of Gigaopto's optical modules are open-source and can be coded to be fully compatible with many highly popular optical devices. For this product (GTS-L1596-40DI) please refer to the following compatibility table. If you would like more information about compatibility, please feel free to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-L1596-40DI | Arista | 10GBASE-ER-I |
| Cisco | SFP-10G-ER-I | Juniper | SFPP-10GE-ER-IT |
| Dell | SFP-10GER-55-I | Brocade | 10G-SFPP-ER-I |
| Intel | SFP-10GER-55-I | H3C | SFP-10GER-55-I |
| Netgear | SFP-10GER-55-I | HW | OSX040N01-I |
| Mellanox | SFP-10GER-55-I | Extreme | SFP-10GER-55-I |
