Product Details:
|
| Product Name: | SFP-10G-ER40-I | Data Rate: | 10Gb/s |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 1310nm |
| Component: | DFB+PIN | Link Distance: | 40km |
| Operating Temperature: | -40 To 85°C | Connector: | LC Duplex Receptacle |
| OEM/ODM: | Supported | Keywords: | SFP+ 10GBASE-ER40-I, SFP+ 40KM 1310nm Industrial |
| Highlight: | 1310nm SFP+ Optical Transceiver,40km SFP+ Optical Transceiver,SFP 10G ER |
||

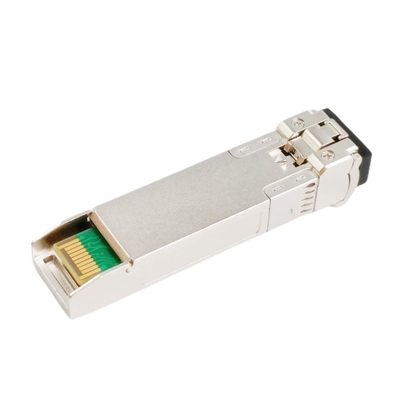

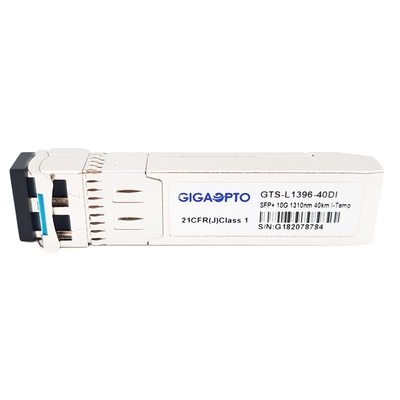

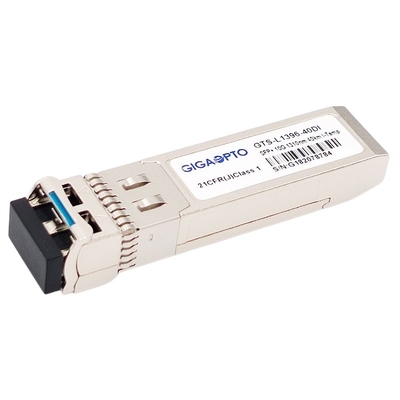

SFP-10G-ER40-I 1310nm Wavelength 40km Single Mode Fiber Transceiver Module for Ethernet Industrial Operating Temperature -40°C to 85°C
Description
This 1310nm DFB 10Gb/s SFP+ transceiver module offers a variety of 10 Gigabit Ethernet connectivity options and links up to 40km over LC duplex connector with single mode fiber (SMF, G.652).
This transceiver is compliant with SFF-8431 and SFF-8432. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472.which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. All SFP+ transceiver modules meet FDA/CDRH and IEC-60825 standards and are Class 1 laser products.
Featuring an operating temperature range of -40°C to 85°C, this industrial fiber optic transceiver can work in harsh industrial environments, such as telecommunication, data processing & management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.
Specification
| Form Factor | SFP+ | Data Rate | 10.52Gbps |
| Center Wavelength | 1310nm | Max Distance | 40km |
| Interface | Duplex LC receptacle | Fiber Type | SMF |
| LD Laser Type | DFB | PD Type | PIN |
| TX Output Power | 0~5dBm | RX Sensitivity | < -15dBm |
| Power-budget | 15dB | Extinction Ratio | >3.5dB |
| Power Dissipation | ≤1.5W | Average Receiver Power | <0.5dBm |
| DDM/DOM Support | Supported | Temperature | -40°C to 85°C |
| OEM/ODM | Yes | Warranty Limited Time | 3 years |
| Protocols | SFP+ MSA , CPRI, eCPRI, IEEE802.3ae, SFF-8432, SFF-8431, 10GFC, FC-PI-4 | ||
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 1km | ≤ 10km | ≤ 15km | ≤ 20km | ≤ 30km | ≤ 40km |
| Attenuator | 12dB | 12dB | 9dB | 7dB | 5dB | 2dB |
Features
Application
Standard
Compatibility
All of Gigaopto's optical modules are open-source and can be coded to be fully compatible with many highly popular optical devices. For this product GTS-L1396-40DI 10G SFP+ ER40 transceiver, please refer to the following compatibility table. If you would like more information about compatibility, please feel free to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-L1396-40DI | Arista | SFP-10G-ER40-I |
| Cisco | SFP-10G-ER40-I | Juniper | EX-SFP-10GE-ER40-I |
| Dell | 330-2404-40-I | Brocade | 10G-SFPP-ER40-I |
| HW | SFP-10G-ER40-I | Ciena | 12275-I |
