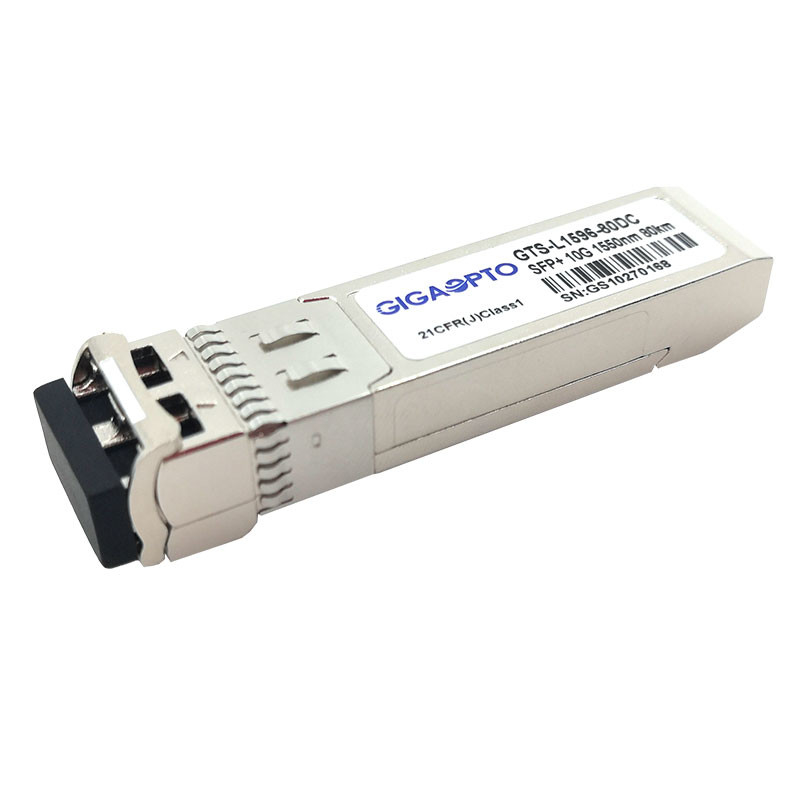

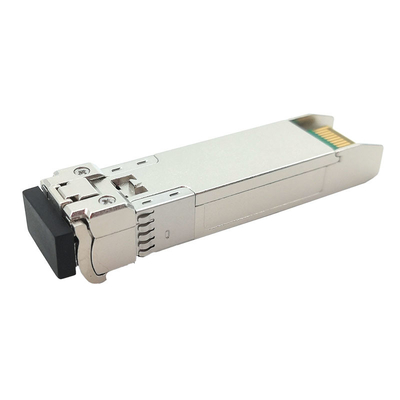

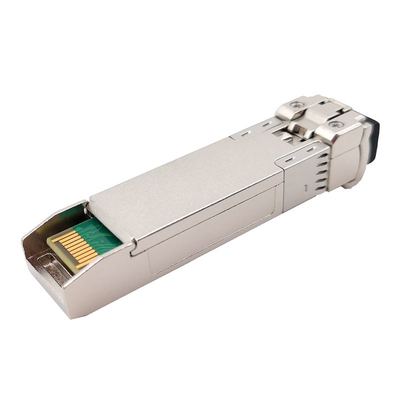

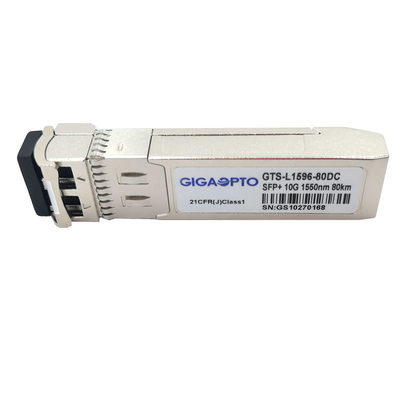

SFP+ 10GBASE-ZR 80km 1550nm Single Mode Fiber Transceiver Module LC DOM

Description
Product Name: 10GBASE-ZR Speed: 10Gb/s
Form Type: SFP+ Wavelength: 1550nm
Component: EML+APD Cable Distance: 80km
Connector: LC Duplex DOM: Supported
Keywords: SFP+ 10GBASE-ZR, SFP-10G-ZR 80km

10G SFP+ ZR 1550nm 80km 10Gigabit Ethernet Transceiver Module SMF LC DOM





Description



This 10G SFP+ ZR transceiver module provides 10GBase-ZR/ZW (10.3125Gbps/9.953Gbps) throughput up to 80km over G.652 double fiber single-mode fiber (SMF) optical cable using a wavelength of 1550nm via an LC connector.

This module consists of three sections: a top quality 1550nm cooled EML laser transmitter and an APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All module satisfy class 1 laser safety requirements.

The module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-ZR/ZW per IEEE 802.3ae), and 10G Fibre Channel standards. It is with the SFP 20-pin connector to allow hot plug capability.

Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fiber Channel etc.

Each transceiver is 100% optically inspected and tested for quality, reliability and compatibility before shipping.





Specification



Form Type SFP+ Data Rate 10Gbps
Wavelength 1550nm Cable Reach 80km
Connector Type Duplex-LC receptacle Cable Type G.652 SMF
Transmitter Type EML Laser Receiver Type APD
TX Output Power 0~4dBm RX Sensitivity < -23dBm
Power-budget 23dB Extinction Ratio >6.0dB
Supply Current ≤1.5W RX Overload >-7dBm
DOM Support Yes Temperature Range 0 to 70°C
OEM/ODM Supported Warranty 3 years
Protocols SFP+ MSA Compliant, CPRI, eCPRI



Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.



Distance ≤ 10km ≤ 30km ≤ 50km
Attenuator 12dB 10dB 5dB





Features



  • 10GBASE ZR SFP+ Transceiver Module
  • Hot-pluggable SFP+ footprint
  • 23dB optical link budget for up to 80km over G.652 single mode fiber
  • Supports 8.5 and 9.95 to 11.3 Gb/s
  • Uncooled 1550nm EML laser, APD photo-detector
  • Power dissipation <1.5W
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic functions
  • Standard 0°C to 75°C temperature range
  • RoHS compliant and lead-free



Application



  • 10G Ethernet ZR and 10G Fibre Channel
  • OTN G.709 OTU1e/2/2e FEC bit rates
  • 8.5Gb/s Fibre Channel





Electrical and Optical Characteristics



Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1530 1550 1565 nm
Spectral Width(-20dB) Δλ     1 nm
Side-Mode Suppression Ratio SMSR 30 -   dB
Average Output Power Pout 0   +4 dBm 1
Extinction Ratio ER 6.0     dB
Data Input Swing Differential VIN 180   850 mV 2
Input Differential Impedance ZIN 90 100 110 Ω

TX Disable

Disable   2.0   Vcc V
Enable   0   0.8 V

TX Fault

Fault   2.0   Vcc V
Normal   0   0.8 V
Receiver
Centre Wavelength λc 1260   1600 nm
Receiver Sensitivity       -23 dBm 3
Receiver Overload   -7     dBm 3
LOS De-Assert LOSD     -24 dBm
LOS Assert LOSA -35     dBm
LOS Hysteresis   0.5   4 dB
Data Output Swing Differential Vout 300   900 mV 4

LOS

High 2.0   Vcc V
Low     0.8 V



Notes

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 231-1 test pattern @10.312Gbps, BER ≤1×10-12.

4. Internally AC-coupled.





Compatibility



All of Gigaopto's GTS-L1596-80DC optical transceiver modules are open sourced, and can be coded to be fully compatible with mainstream devices. Please refer to the following form. If you would like more information about compatibility, please feel free to contact us.



Corresponding Compatible Brand/Part Number
Brand Part Number Brand Part Number
Gigaopto GTS-L1596-80DC Arista SFP-10G-ER
Cisco SFP-10G-ZR Juniper EX-SFP-10GE-ZR
Cisco SFP-10G-ZR-S Brocade 10G-SFPP-ZR
HPE SFP-10G-ZR HW SFP-10G-ZR
Dell SFP-10G-ZR HW LE2MXSC80FF0
Ciena XCVR-S80V55 Extreme 10GB-ZR-SFPP
Ciena 12400 Extreme 10310
Avaya AA1403016-E6 Alcatel-Lucent SFP-10G-ZR
