Product Details:
|
| Product Name: | 10GBASE-LRM2 | Bit Rate: | 10Gbps |
|---|---|---|---|
| Form Type: | SFP+ | Wavelength: | 1310nm |
| Media: | SMF | Components: | FP+PIN |
| Reach: | 2km | Connector: | LC Duplex |
| Keywords: | SFP-10G-LRM2 |

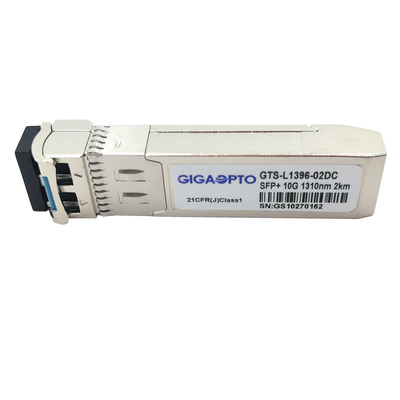

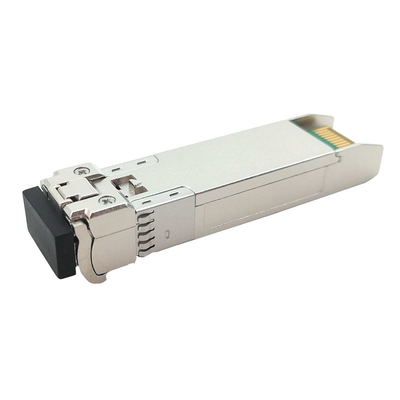

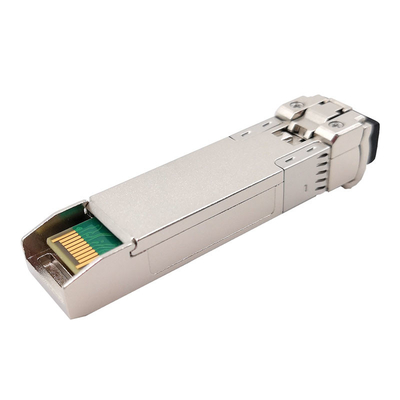

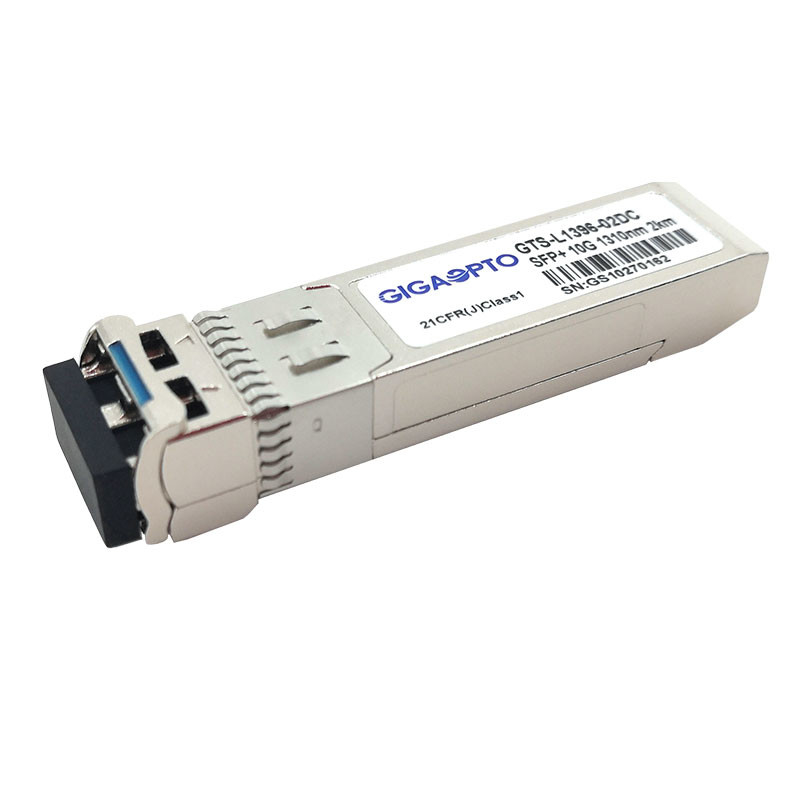

10GBASE LRM2 SFP Plus 1310nm SMF 2km Optical Transceiver LC DOM
Description
This high performance, cost effective SFP+ 10GBASE-LRM2 transceiver module is designed for use in 10GBASE Ethernet, supporting 2km transmission over double strand single mode fiber via an LC connector using a nominal wavelength of 1310nm.
This SFP+ 10G LRM2 transceiver consists of two sections: a high reliable 1310nm FP laser transmitter and a high sensitivity PIN photodiode, all module satisfy Class 1 laser safety requirements.
This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. It is with the SFP+ 20-pin edge type connector to allow hot plug capability.
Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ LRM2 transceiver is widely used for data center, 10G Fiber Channel, SONET and SDH etc.
Each transceiver is 100% optically inspected and tested for compatibility before shipping.
Specification
| Packaging Technology | SFP+ | Max Bit- Rate | 10G |
| Wavelength (TX) | 1310nm | Fiber Reach | 2km |
| Connector | LC Duplex | Media | SMF |
| Transmitter Type | FP Laser | Receiver Type | PIN |
| TX Output Power | -8.2~-0.5dBm | RX Sensitivity | <-14.4dBm |
| Power-budget | 6.2dB | Extinction Ratio | >3.5dB |
| Power Consumption | ≤1.0W | RX Overload | >0.5dBm |
| DOM Support | Yes | Temperature Range | Com. |
| OEM/ODM | Supported | Warranty Limited Time | 36 months |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI | ||
Features
Application
Electrical and Optical Characteristics
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Total Supply Current | ICC | 300 | mA | |||
| Transmitter | ||||||
| Transmitter Differential Input Voltage | 180 | 1200 | mV | |||
| Tx_Fault Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| Tx_Fault Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Tx_Disable Input Voltage - High | VIH | 2 | Vcc | V | LVTTL | |
| Tx_Disable Input Voltage - Low | VIL | 0 | 0.8 | V | LVTTL | |
| Input Differential Impedance | 90 | 100 | 110 | Ω | ||
| Receiver | ||||||
| Receiver Differential Output Voltage | 300 | 850 | mV | |||
| LOS Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| LOS Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Output Differential Impedance | 90 | 100 | 110 | Ω | ||
| Optical Transmitter Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Average Output Power | POUT | -8.2 | +0.5 | dBm | |||
| Center Wavelength | λc | 1260 | 1310 | 1360 | nm | ||
| Spectral Width | ∆λ | 2.8 | nm | ||||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | ||||
| Optical Rise/Fall Time | TR/TF | 28 | 50 | ps | |||
| Transmitter and Dispersion Penalty | TDP | 3.2 | dB | ||||
| Transmitter OFF Power | POFF | -45 | dBm | ||||
| Output Eye Diagram | Complies with IEEE802.3ae | ||||||
| Optical Receiver Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Center Wavelength | λc | 1260 | 1610 | nm | |||
| Receiver Sensitivity | PSEN | -14.4 | dBm | 1 | |||
| Input Saturation Power (Overload) | PSAT | 0.5 | dBm | ||||
| Receiver Reflectance | -12 | dB | |||||
| LOS De-assert Level | LOSD | -17 | dBm | ||||
| LOS Assert Level | LOSA | -30 | dBm | ||||
| LOS hysteresis | HYS | 0.5 | 6 | dB | |||
Note 1. Measured with PRBS231-1 pattern, @10.3125Gbps, ER=4dB, BER=1x10-12.
Compatibility
Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this GTS-L1396-02DC, please refer to the P/N correspondence table. For more product compatibility, you are always welcome to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Compatible Brand | Part Number | Compatible Brand | Part Number |
| Gigaopto | GTS-L1396-02DC | Brocade | 10G-SFPP-LRM2 |
| Cisco | SFP-10G-LRM2 | Juniper | EX-SFP-10GE-LRM2 |
| Netgear | AXM764 | ||
Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
