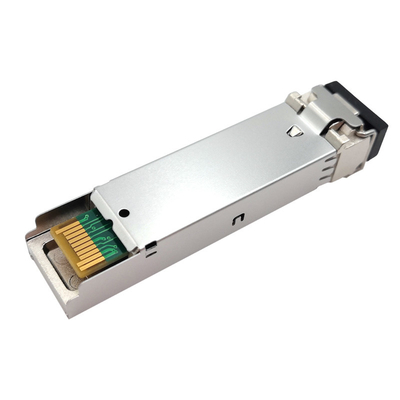

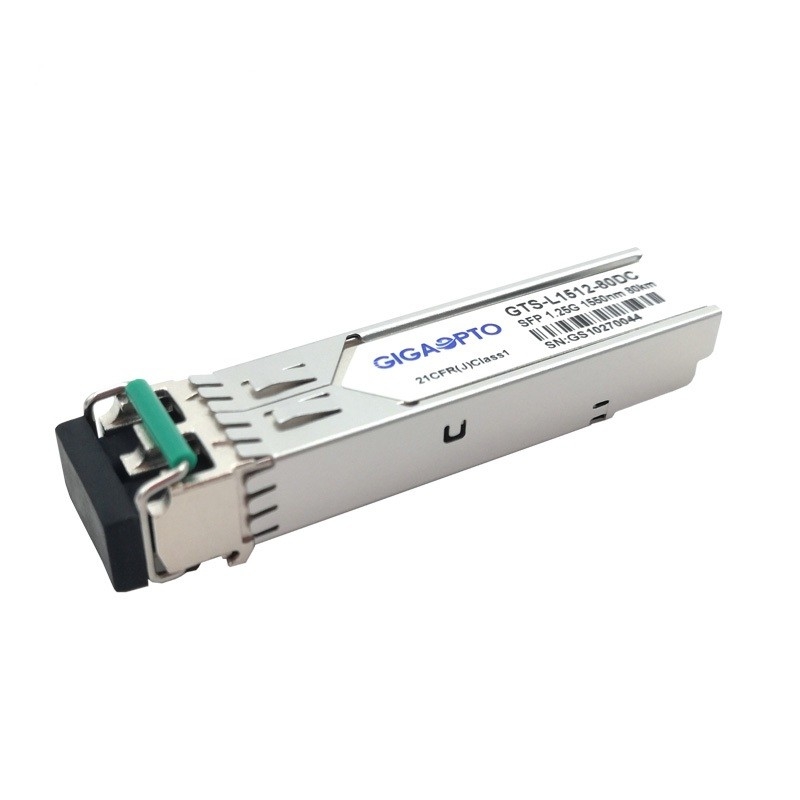

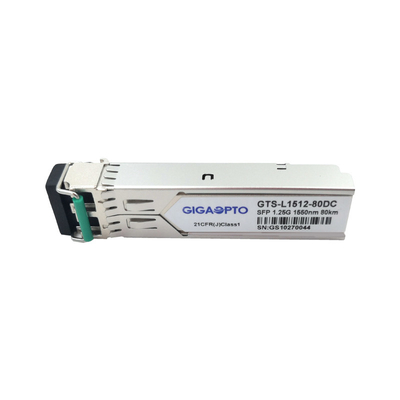

SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver

Large Image :  SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver

Product Details:
Place of Origin: Shenzhen, China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-L1512-80DC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs / month

SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver

Description
Form Factor: SFP Data Rate: 1.25Gbps
TX Power: -1~5dBm Max Distance: 80km
Wavelength: 1550nm Extinction Ratio: >9dB
Optical Components: DFB 1550nm Optical Connector: Dual LC
High Light: 1000BASE-ZX SFP Transceiver, 1G SFP 1550nm 80km Fiber Module, 1.25G SMF Optical Transceiver

Cisco Compatible 1000BASE-ZX 1550nm SMF 80km SFP Duplex LC Optical Transceiver





Description



The GIGAOPTO's GTS-L1512-80DC transceiver is a small form factor module that provides 1000Base-ZX throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1550nm via an LC connector. This transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. The transmitter section uses a multiple quantum well 1550nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The transceiver is compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.





Specification



Compatible Brand CISCO Compatible P/N GLC-ZX-SM
Product Package SFP Data Rate (Gbps) 1.25Gbps
Connector LC Dual Reach 80km
DOM YES Media SMF
Warranty 3 years Commercial Operating Temperature 0 to 70°C (32 to 158°F)
Center Wavelength 1550nm Power Supply Voltage 3.3V
Laser Type DFB 1550nm Total Current <300mA
TX Power -1~5dBm RX SENS. < -26dBm
ER >9dB RX Overload >-3dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004



Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

according to the table.

Distance ≤15km ≤35km ≤55km
Attenuator 15dB 10dB 5dB





Features



  • Operating Data Rate up to 1.25Gbps
  • 1550nm DFB laser and PIN photodetector for 80km transmission
  • 80km with 9/125 µm SMF
  • Duplex LC receptacle optical interface compliant
  • Single +3.3V power supply

  • DDMI function available with internally calibrated mode

  • Hot-pluggable

  • Receiver loss of signal output

  • Transmitter disable input

  • International Class 1 laser safety certified
  • Operating temperature range:

Commercial: 0°C~70°C

Industrial: -40°C~85°C

  • Compliant with SFP MSA and SFF-8472
  • RoHS Compliant





Application



  • Gigabit Ethernet Switches and Routers
  • Fiber Channel Switch Infrastructure
  • Other Optical Links





Standard



  • Compliant with SFP MSA (INF-8074i)
  • Compliant with SFF-8472
  • Compliant with IEEE 802.3z





Compatibility



Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this (1000BASE-ZX SFP 1550nm 80km), please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.



Compatible Brand Compatible Part Number Compatible Brand Compatible Part Number
GIGAOPTO GTS-L1512-80DC HPE H3C JD063B
CISCO GLC-ZX-SM HPE H3C SFP-GE-LH70-SM1550
Juniper SFP-1GE-LH H3C 430-4586
Arista SFP-1G-EX-80 Dell MGBIC-08
Brocade E1MG-LHA Extreme SFP-1.25G-ZX70
HPE ProCurve J4860A HuaWei BN-CKM-S-ZX
Avaya AA1419052-E6 IBM AGM733
Aruba SFP-ZX Netgear DEM-315GT
Allied Telesis AT-SPLX80 D-Link AFCT-57V6USZ
Alcatel-Lucent iSFP-GIG-LH70 SMC Networks SMCBGZLCX1





Ordering Information



Part Number Description Data Rate Wavelength Distance Fibre Type Conn.
GTS-L0812-02DC 1000BASE-SX SFP 1.25Gb/s 850nm

550m@OM2

275m@OM1

220m@FDDI

MMF LC
GTS-L1312-M2DC 1000BASE-SX SFP 1.25Gb/s 1310nm 2km@OM4 MMF LC
GTS-L1312-10DC 1000BASE-LX SFP 1.25Gb/s 1310nm 10km@SMF SMF LC
GTS-L1312-20DC 100BASE-LH SFP 1.25Gb/s 1310nm 20km SMF LC
GTS-L1512-40DC 1000BASE-EX SFP 1.25Gb/s 1550nm 40km SMF LC
GTS-L1312-40DC 1000BASE-EX SFP 1.25Gb/s 1310nm 40km SMF LC
GTS-L1512-80DC 1000BASE-ZX SFP 1.25Gb/s 1550nm 80km SMF LC
GTS-L1512-A0DC 1000BASE-EZX SFP 1.25Gb/s 1550nm 100km SMF LC
GTS-L1512-C0DC 1000BASE-EZX SFP 1.25Gb/s 1550nm 120km SMF LC
GTS-L1512-F0DC 1000BASE-EZX SFP 1.25Gb/s 1550nm 160km SMF LC





Pin Definition



SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver 0





Typical Application Circuit



SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver 1





Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)



SFP 1550nm SMF 80km 1000BASE-ZX Module 1.25G Duplex LC Optical Transceiver 2
