Form Factor: | SFP | Data Rate: | 1.25Gbps |
---|---|---|---|
Fibre Type: | MMF | Wavelength: | 850nm |
Transmitter Type: | VCSEL | Receiver Type: | PIN |
Typical Power Consumption: | ≤0.8w | ||
High Light: | 1.25G SFP Optical Module 850nm 550m, SFP 1G MMF Optical Transceiver, 1000BASE-SX SFP LC Transceiver |
Cisco Compatible SFP 1000BASE-SX 850nm MMF 550m DOM Duplex LC Module
Description

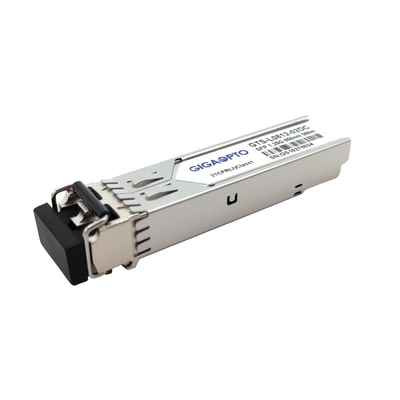

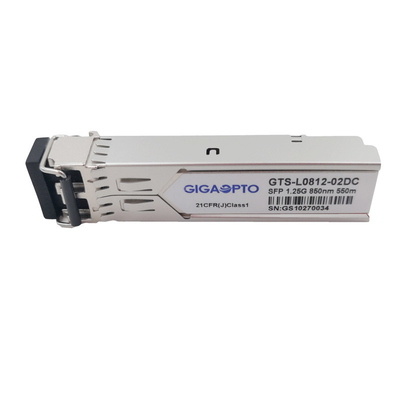

The GIGAOPTO's GTS-L0812-02DC transceiver is a cost-effective small form factor pluggable (SFP) with the speed rate up to 1.25Gbps and transmission distance up to 550m using a wavelength of 850nm via an LC connector. This SFP SX module, designed for multi-mode fiber, is a compact, hot-pluggable optical transceiver used for both telecommunication and data communications applications. This transceiver is compatible with the IEEE 802.3z 1000BASE-SX standard, operating on legacy 50μm multimode fiber links up to 550m and on 62.5μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220m.
Specification
Compatible Brand | CISCO | Compatible PN | GLC-SX-MM |
Form Type | SFP | Max Data Rate | 1.25Gbps |
Optical Connector | Duplex LC | Max Cable Distance |
550m@50/125µm OM2 MMF 300m@62.5/125µm OM1 MMF 220m@62.5/125µm FDDI MMF |
DDM/DOM | Supported | Media | Multi-Mode Fiber |
Wavelength (Typical) | 850nm | Commercial Temperature | 0 to 70°C (32 to 158°F) |
Transmitter Differential Input Voltage | 400 ~2400mV | Receiver Differential Output Voltage | 600 ~1600mV |
Power Supply Voltage | 3.3V | Power Supply Current | < 300mA |
Power Consumption | ≤0.8w | Bit Error Ratio (BER) | 1E-12 |
Laser Type | VCSEL | PD Type | PIN |
TX Power | -9.5 ~ - 3dBm | RX Sensitivity | < -18dBm |
ER | >9dB | RX Saturation | > -3dBm |
Protocols | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
Features
Application
Standard
Compatibility
Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this (1000BASE-SX SFP 850nm 550m), please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.
Compatible Brand | Compatible P/N | Compatible Brand | Compatible P/N |
GIGAOPTO | GTS-L0812-02DC | HPE H3C | JD118A |
CISCO | GLC-SX-MM | HPE H3C | JD118B |
CISCO Meraki | MA-SFP-1GB-SX | H3C | SFP-GE-SX-MM850-A |
CISCO Linksys | MGBSX1 | Dell | 320-2881 |
Alcatel-Lucent | SFP-GIG-SX | Extreme | I-MGBIC-GSX |
Juniper | EX-SFP-1GE-SX | HuaWei | 0231A562 |
Arista | SFP-1G-SX | IBM | 81Y1622 |
Brocade | E1MG-SX-OM | Netgear | AGM731F |
HPE ProCurve | J4858A | D-Link | DEM-311GT |
HPE ProCurve | J4858B | Avago | HFBR-5710L |
HPE ProCurve | J4859C | F5 Networks | F5-UPG-SFP-R |
HPE Aruba | J4858D | Avaya | AA1419048-E6 |
TRENDnet | TEG-MGBSX | Aruba | SFP-SX |
SMC Networks | SMC1GSFP-SX | Allied Telesis | AT-SPSX |
Ordering Information
P/N | Description | Speed | Wavelength | Distance | Cable Type | Connector |
GTS-L0812-02DC | 1000BASE-SX SFP | 1.25Gb/s | 850nm |
550m@OM2 275m@OM1 220m@FDDI |
MMF | Dual LC |
GTS-L1312-M2DC | 1000BASE-SX SFP | 1.25Gb/s | 1310nm | 2km | MMF | Dual LC |
GTS-L1312-10DC | 1000BASE-LX SFP | 1.25Gb/s | 1310nm | 10km | SMF | Dual LC |
GTS-L1312-20DC | 1000BASE-LH SFP | 1.25Gb/s | 1310nm | 20km | SMF | Dual LC |
GTS-L1512-40DC | 1000BASE-EX SFP | 1.25Gb/s | 1550nm | 40km | SMF | Dual LC |
GTS-L1312-40DC | 1000BASE-EX SFP | 1.25Gb/s | 1310nm | 40km | SMF | Dual LC |
GTS-L1512-80DC | 1000BASE-ZX SFP | 1.25Gb/s | 1550nm | 80km | SMF | Dual LC |
GTS-L1512-A0DC | 1000BASE-EZX SFP | 1.25Gb/s | 1550nm | 100km | SMF | Dual LC |
GTS-L1512-C0DC | 1000BASE-EZX SFP | 1.25Gbps | 1550nm | 120km | SMF | Dual LC |
GTS-L1512-F0DC | 1000BASE-EZX SFP | 1.25Gbps | 1550nm | 160km | SMF | Dual LC |
Pin Definition
Typical Application Circuit
Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
