Product Details:
|
| Production Name: | 10GBASE-T Copper | Form Factor: | SFP+ |
|---|---|---|---|
| Data Rate: | 1000Mbps To 10Gbps | Connector Type: | RJ-45 |
| Cable Type: | CAT.6a/CAT7 | Reach: | 80m |
| Keywords: | 10GBase-T SFP+ Transceiver, 10G Copper RJ-45 | ||
| High Light: | Copper SFP+ RJ45 Transceiver,80m SFP+ RJ45 Transceiver,10GBASE T |
||
Low power consumption/heat dispersion

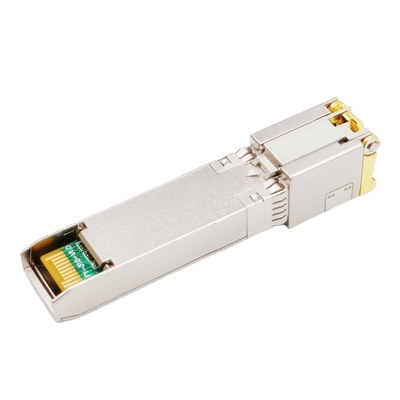

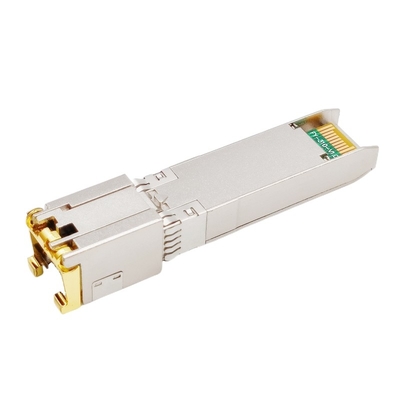

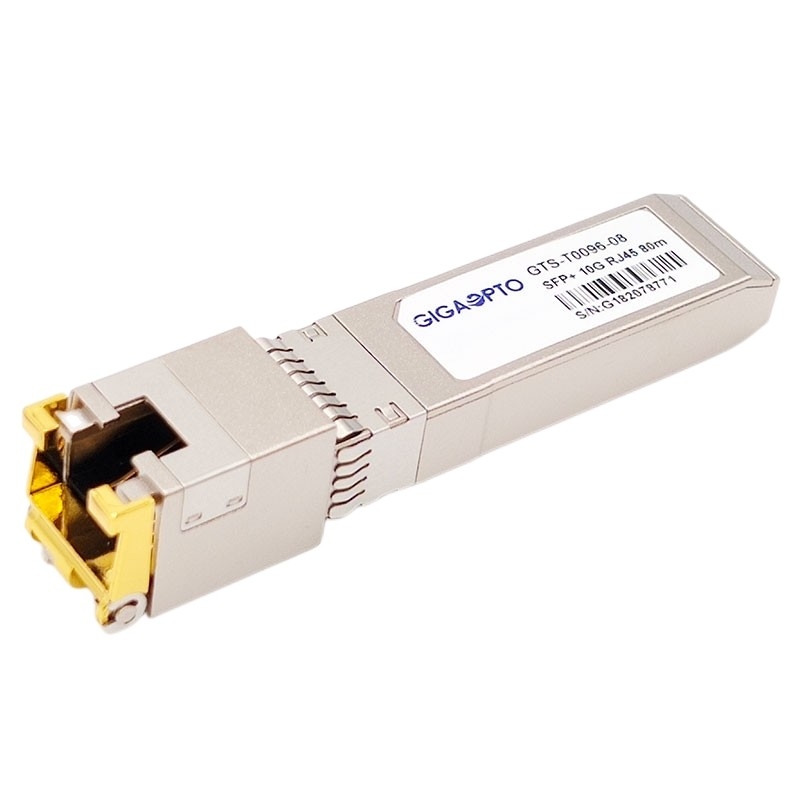

Broadcom chip in build Copper RJ-45 SFP+ CAT6a/CAT7 Transceiver Module 80m
10G T to 10G T, 10G T to 5G T, 10G T to 2.5G T, 10G T to 1000M T SFP+
Description
Gigaopto`s GTS-T0096-08 Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE802.3az, which supports 10Gbps data- rate link up to 80 meters over un-shielded twisted-pair category 6a/7cables. This 10GBASE-T solution offers versatility and a cost-effective alternative to fiber.
The copper module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol.
Each SFP+ copper transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and other diverse networking places using copper connections.
Functional Specification
| Form Type | SFP+ | Max Data Rate | 10.31Gb/s |
| Chip in build | Broadcom | Reach | 80 meters |
| Connector | RJ-45 | Cable Type | Cat.6a/Cat.7 copper |
| Power Consumption | ≤2.5W | Digital Diagnostic | Not Supported |
| EMC (Electro Magnetic Compatibility) | Supported | Warranty | 3-year |
| Temperature Range | 0 to 70°C (32 to 158°F) | OEM/ODM | Supported |
| Protocols | 10G Ethernet, MSA Compliant,RoHS | ||
| Supported Applications | 10GBase-T, 5GBase-T,2.5GBase-T, 1000Base-T | ||
Features
Application
Pin Definitions
| Pin | Symbol | Description | Notes |
| 1 | VEET | Transmitter Ground Common with Receiver Ground | 1 |
| 2 | TFAULT | Transmitter Fault Not supported | |
| 3 | TDIS | Transmitter Disable Laser output disabled on high or open | 2 |
| 4 | MOD_DEF | Module Definition Data line for Serial ID | 3 |
| 5 | MOD_DEF | Module Definition Clock line for Serial ID | 3 |
| 6 | MOD_DEF | Module Definition Grounded within the module | 3 |
| 7 | Rate Select | No connection required | |
| 8 | LOS | High indicates no linked low indicates linked | |
| 9 | VEER | Receiver Ground Common with Transmitter Ground | 1 |
| 10 | VEER | Receiver Ground Common with Transmitter Ground | 1 |
| 11 | VEER | Receiver Ground Common with Transmitter Ground | 1 |
| 12 | RD | Receiver Inverted DATA out AC Coupled | |
| 13 | RD | Receiver Non inverted DATA out AC Coupled | |
| 14 | VEER | Receiver Ground Common with Transmitter Ground | 1 |
| 15 | VCCR | Receiver Power Supply | |
| 16 | VCCT | Transmitter Power Supply | |
| 17 | VEET | Transmitter Ground Common with Receiver Ground | 1 |
| 18 | TD | Transmitter Non Inverted DATA in AC Coupled | |
| 19 | TD | Transmitter Inverted DATA in AC Coupled | |
| 20 | VEET | Transmitter Ground Common with Receiver Ground | 1 |
| Notes: | |||
|
1.Circuit ground is connected to chassis ground 2.PHY disabled on TDID >2.0 V or open enabled on TDIS<0.8 V 3.Should be pulled up with 4.7k to 10k Ohms on host board to a voltage between 2.0V and 3.6V MOD_DEF(0) pulls line low to indicate module is plugged in |
|||
Diagram Mechanical Drawing
Compatibility
Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer 3-year warranty.
For this GTS-T0096-08 SFP+ T RJ45 copper transceiver, please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-T0096-08 | Arista | SFP-10GE-T80 |
| Cisco | SFP-10G-T-80 | Juniper | EX-SFP-10GE-T |
| Dell | GP-10GSFP-T80 | H3C | SFP-XG-T80 |
| Netgear | AXM766 | ||
