Product Details:
|
| Product Name: | XGPON/XGSPON Combo OLT Transceiver | Application: | XGPON & XGSPON |
|---|---|---|---|
| Data Rate(Gbps): | XGSPON-TX 9.953 RX9.953 RX 2.488, XGPON-TX 9.953 RX 2.488 | TX Wavelength: | XGSPON-1577nm, XGPON-1490nm |
| RX Wavelength: | XGSPON/XGPON-1270nm | Component: | EML+APD |
| Warranty: | 3-year | Keywords: | XGPON & XGSPON Combo OLT Transceiver Module |
| High Light: | OLT SFP+ Transceiver,22PIN SFP+ Transceiver,Huawei XGPON |
||
Huawei XGPON & XGSPON Combo OLT SFP+ 2x11 22PIN TX 1577nm 9.953G TX 1490nm 2.488G RX 1270nm 9.953G RX 1270nm 2.488G Transceiver Module
Description

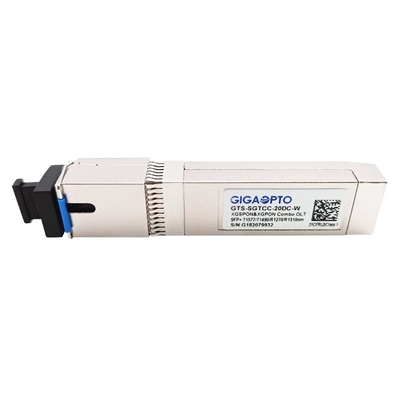

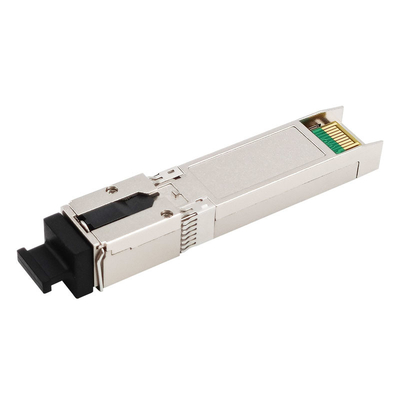

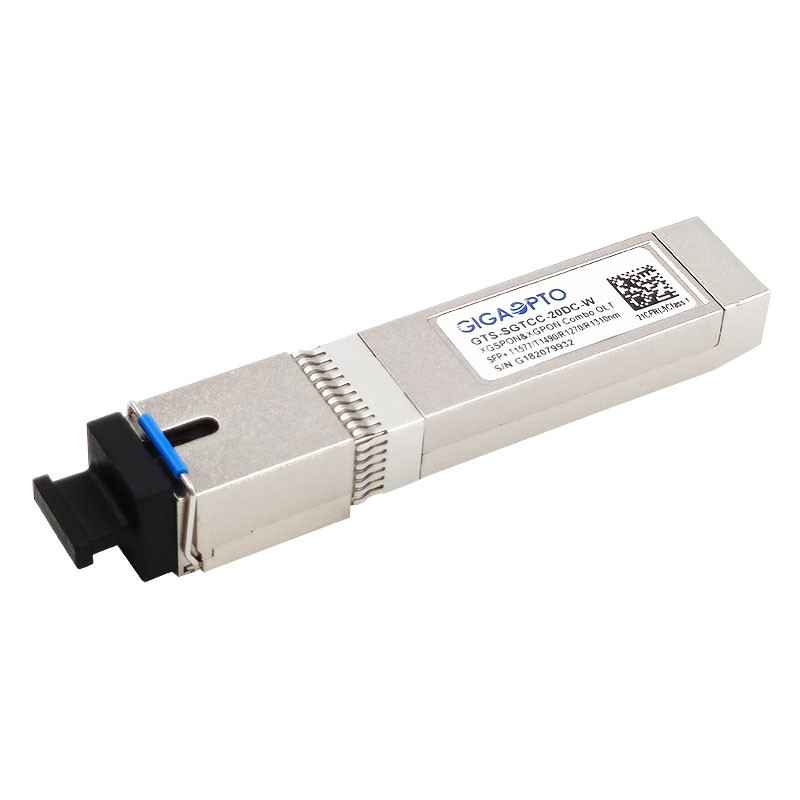

Gigaopto's GTS-SGTCC-20DC-W XGS-PON&XGPON/GPON Combo OLT is compatible with GPON OLT B+ and XGSPON&XGPON OLT N1.
It consists of a 1577nm 10Gbps continuous-mode transmitter with EML laser, a 1270nm 10Gbps/2.5Gbps burst-mode receiver with APD-TIA, a 1490nm 2.5Gbps continuous-mode transmitter with DFB laser, and a 1310nm 1.25G burst-mode receiver with APD-TIA. It is SFP+ form-factor, using BIDI SC/UPC Receptacle.Its Commercial Temperature Ranges from 0 to 70°C.
Features
Operating & Storage Conditions
| Parameter | Unit | Min. | Typical | Max. |
| Storage Temperature | °C | -40 | 85 | |
| Operating Case Temp | °C | 0 | 70 | |
| Storage Humidity | % | 5 | 90 | |
| Operating Relative Humidity | % | 5 | 85 | |
| Power Supply Voltage | V | 3.135 | 3.3 | 3.465 |
| Power Consumption | W | 2.8 | ||
| Damage Threshold for Receiver | dBm | -3 | ||
| Bit Rate for Tx 1577nm | Gbps | 9.953 | ||
| Bit Rate for Rx 1270nm | Gbps | 2.488 | 9.953 | |
| Bit Rate for Tx 1490nm | Gbps | 2.488 | ||
| Bit Rate for Rx 1310nm | Gbps | 1.244 | ||
Characteristics
All performance is specified at whole working temperature and conditions.
| Parameter | Unit | Min. | Typical | Max. | |||
| XGSPON1577nm 9.953G Transmitter | |||||||
| TX Central Wavelength | nm | 1575 | 1577 | 1580 | |||
| Spectral Width (-20dB) | nm | 1 | |||||
| Side Mode Suppression Ratio | dB | 30 | |||||
| XGSPON Mean Launched Power (N1 BOL) |
dBm | 2.5 | 5 | ||||
| XGSPON Mean Launched Power (N1 EOL) |
dBm | 2 | 5 | ||||
| Mean Launched Power (TX Off) | dBm | -39 | |||||
| Extinction Ratio | dB | 8.2 | |||||
| Optical Return Loss Tolerance | dB | 15 | |||||
| XGSPON Transmitter 20km Fiber Dispersion Penalty |
dB | 1 | |||||
| Transmitter Mask (PRBS231-1@9.953G) |
Compliant With ITU-T G.9807.1 | ||||||
| XGPON 1577nm 9.953G Transmitter | |||||||
| TX Central Wavelength | nm | 1575 | 1577 | 1580 | |||
| Spectral Width (-20dB) | nm | 1 | |||||
| Side Mode Suppression Ratio | dB | 30 | |||||
| XGPON Mean Launched Power (N1 BOL) |
dBm | 2.5 | 6 | ||||
| XGPON Mean Launched Power | dBm | 2 | 6 | ||||
| (N1 EOL) | |||||||
| Mean Launched Power (TX Off) | dBm | -39 | |||||
| Extinction Ratio | dB | 8.2 | |||||
| Optical Return Loss Tolerance | dB | 15 | |||||
| XGPON Transmitter 20km Fiber Dispersion Penalty |
dB | 0.5 | |||||
| Transmitter Mask (PRBS231-1@9.953G) |
Compliant With ITU-T G.987.2 | ||||||
| XGSPON 1270nm 9.953G Receiver | |||||||
| Receive Wavelength | nm | 1260 | 1270 | 1280 | |||
| Sensitivity (N1 BOL) (PRBS231-1@9.953G,ER=8.2, BER<10- 3) |
dBm | -26.5 | |||||
| Sensitivity (N1 EOL) (PRBS231-1@9.953G,ER=8.2, BER<10- 3) |
dBm | -26 | |||||
| Overload (N1) | dBm | -4 | |||||
| Settling time | ns | 100 | |||||
| SD Assert Level | dBm | -29 | |||||
| SD De-assert Level | dBm | -45 | |||||
| SD Hysteresis | dB | 0.5 | 6 | ||||
| XGPON 1270nm 2.488G Receiver | |||||||
| Receive Wavelength | nm | 1260 | 1270 | 1280 | |||
| Sensitivity (N1 BOL) (PRBS223-1@2.488G,ER=8.2, BER<10- 4) |
dBm | -28 | |||||
| Sensitivity (N1 EOL) (PRBS223-1@2.488G,ER=8.2, BER<10- 4) |
dBm | -27.5 | |||||
| Overload (N1) | dBm | -6 | |||||
| SD Assert Level | dBm | -29 | |||||
| SD De-assert Level | dBm | -45 | |||||
| SD Hysteresis | dB | 0.5 | 6 | ||||
| Parameter | Unit | Min. | Typical | Max. |
| GPON 1490nm 2.488G Transmitter | ||||
| TX Central Wavelength | nm | 1480 | 1490 | 1500 |
| Spectral Width (-20dB) | nm | 1 | ||
| Side Mode Suppression Ratio | dB | 30 | ||
| Mean Launched Power (B+ BOL) | dBm | 2.5 | 5 | |
| Mean Launched Power (B+ EOL) | dBm | 1.5 | 5 | |
| Mean Launched Power (TX Off) | dBm | -39 | ||
| Extinction Ratio | dB | 8.2 | ||
| Optical Return Loss Tolerance | dB | 15 | ||
| GPON Transmitter 20km Fiber Dispersion Penalty |
dB | 1 | ||
| Transmitter Mask(PRBS223- 1@2.488G) |
Compliant WithITU-TG.984.2 | |||
| GPON 1310nm 1.244G Receiver | ||||
| Receive Wavelength | nm | 1290 | 1310 | 1330 |
| Sensitivity (B+ BOL) (PRBS223-1@1.244G,ER=10,BER<10- 10) |
dBm | -29 | ||
| Sensitivity (B+ EOL) (PRBS223-1@1.244G,ER=10,BER<10- 10) |
dBm | -28 | ||
| Overload (B+) | dBm | -8 | ||
| Receiver Burst Mode Dynamic Range | dB | 15 | ||
| SDAssert Level | dBm | -30 | ||
| SDDe-assert Level | dBm | -45 | ||
| SD Hysteresis | dB | 0.5 | 6 | |
| Parameter | Unit | Min. | Typical | Max. |
| Electrical Interface Characteristics | ||||
| XGSPON&XGPON Data Input Swing Differential/TX |
mV | 120 | 800 | |
| XGSPON&XGPON Data Output Swing Differential/RX |
mV | 400 | 800 | |
| GPON Data Input Swing Differential/TX | mV | 200 | 1600 | |
| GPON Data Output Swing Differential/RX |
mV | 1200 | 2000 | |
| Data Differential Impedance | Ω | 90 | 100 | 110 |
| LVTTL Output High | V | 2.4 | Vcc | |
| LVTTL Output Low | V | 0 | 0.4 | |
| LVTTL Input High | V | 2.0 | Vcc+0.3 | |
| LVTTL Input Low | V | 0 | 0.8 | |
Mechanical Drawings
