Product Details:
|
| Product Name: | SFP+ GPON-XGSPON Combo OLT | Application For: | GPON & XGSPON |
|---|---|---|---|
| Data Rate(Gbps): | XGSPON-TX 9.953 RX9.953 RX 2.488, GPON-TX 2.488 RX 1.244 | TX Wavelength: | XGSPON-1577nm, GPON-1490nm |
| RX Wavelength: | XGSPON-1270nm,GPON-1310nm | Class: | N1-XGPON/XGSPON OLT, B+ -GPON OLT |
| DDMI: | Yes | Keywords: | SFP+ GPON & XGSPON Combo |
| High Light: | Gigaopto SFP+ Transceiver Module,1270nm SFP+ Transceiver Module,XGSPON |
||

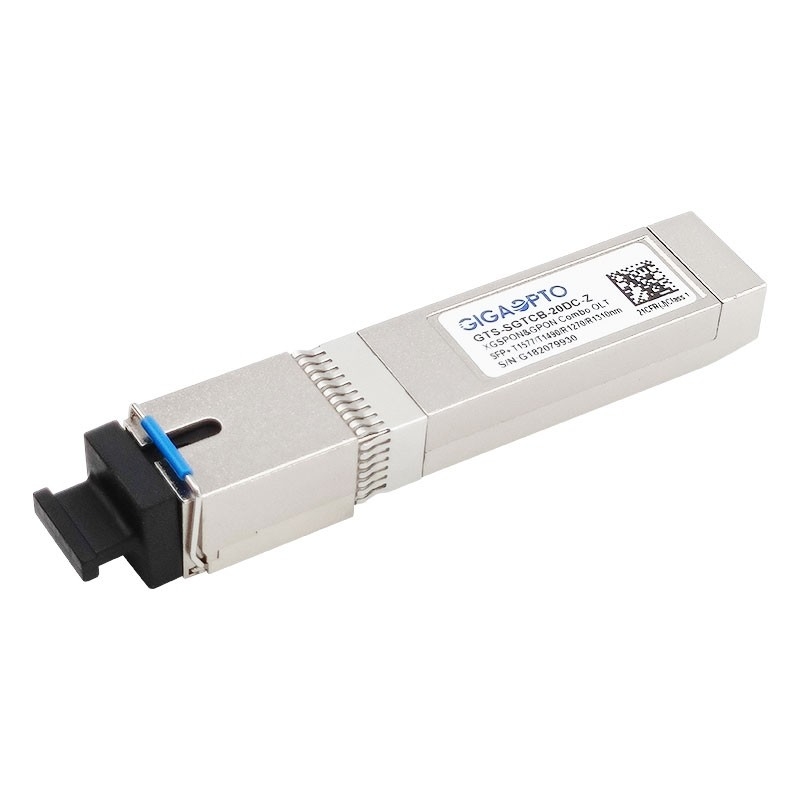

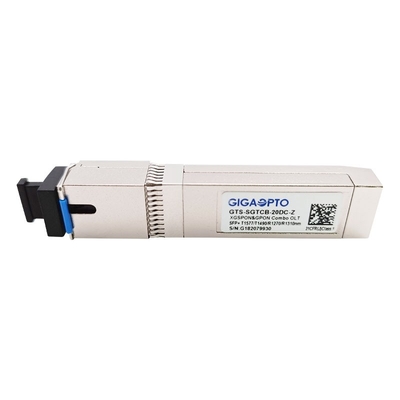

ZTE Compatible GPON - XGSPON Combo OLT SFP+ TX 1577nm 9.953G TX 1490nm 2.488G RX 1270nm 9.953G RX 1310nm 1.244G Transceiver Module
Single fiber quad-directional data link SFP+ GPON & XGSPON Combo OLT Transceiver Module
Description
The GTS-SGTCB-20DC-Z is a combination of XGSPON OLT,XGPON OLT and GPON OLT optical transceiver in a SFP+ packaging. It is designed to support both the new ITU-T G.9807.1 and ITU-T G.987.2 XGS-PON/XG-PON and the legacy ITU-T G.984.2 GPON specifications over a single fiber via coarse wave division multiplexing.
For XGSPON/XGPON, it employs a 1577nm EML CW mode downstream transmitter operating at 9.953Gb/s and a 1270nm APD/TIA burst mode upstream receiver operating at 9.953Gb/s or 2.488Gb/s.
For GPON, it employs a 1490nm DFB CW mode downstream transmitter operating at 2.488Gb/s and a 1310nm APD/TIA burst mode upstream receiver operating at 1.244Gb/s.
It is designed to operate over the commercial case temperature range from 0 to 70°C.
The GTS-SGTCB-20DC-Z is designed to support up to 32 subscribers over distances of up to 20km. It is FDA 21CFR1040.10 and IEC 60825-2 Class I laser safety compliant and meets the EEC Directive 2002/95/EC for RoHS compliance. The Transceiver is ESD safe when tested according to IEC61000-4-2. The device complies with (US) FCC Class B, (Europe) CE Class B.
Specification
| Product | XGSPON/GPON Combo OLT SFP | Form Factor | SFP+ |
| Applications | GPON /XGPON/XGSPON | ODN Class | N1- XGPON/XGSPON OLT |
| Transmission | 20km | B+ - GPON OLT | |
| Category | PON SFP | Optical Connector | SC UPC receptacle |
| Compatible Brand | ZTE | Environment | Operating: 0°C to 70°C |
| Warranty | 3 Years | storage:-40~85°C | |
| Data Rate -XGPON | TX 9.953G ,RX9.953G/RX 2.488G | Total Supply Current | <1000mA |
| Data Rate - GPON | TX 2.488G/ RX 1.244G | Power Consumption | <3.5 W |
| Wavelength - XGPON/XGSPON | TX1577nm/RX1270nm | Transmitter Type | EML/DFB Laser |
| Wavelength - GPON | TX1490nm/RX1310nm | Receiver Type | APD |
| TX Power - XGPON/XGSPON | 2~5dBm | Rx Input- XGSPON | < -26dBm |
| TX Power (dBm) | 1.5~5dBm | Rx Input - XGPON | < -27.5dBm |
| Extinction Ratio | >8.2dB | Rx Input - GPON | < -28dBm |
| Digital Diagnostic Monitoring | Yes | Overload - XGSPON | >-5dBm |
| OEM/ODM | Support | Overload - XGPON | >-7dBm |
| MTBF | 10,000,000hours | Overload - XGPON | >-8dBm |
| Protocols | ITU-T G.9807.1 and ITU-T G.987.2,ITU-T G.984.2 | ||
Product Features
Application
Standard
