XGPON OLT N2a XFP Transceiver Module TX 1577nm 9.953G/RX1270nm 2.488G SMF 20km SC UPC DDM

XG-PON OLT XFP Transceiver

Compliant with ITU-T G.987.2,Class N2a

Single fiber wdml Transceiver with SC Receptacle

9.953Gb/s downlink and 2.488Gb/s uplink

RoHS,CE,FCC,REACH

Description

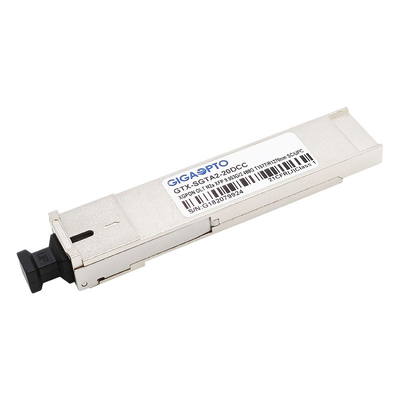

Gigaopto’s GTX-SGTA2-20DCC XGPON OLT Transceiver Module is designed for the optical line terminal (OLT) of XGPON Applications with 9.953Gbps in downstream and 2.488Gbps in upstream. It is a high performance module for single fiber communications by using 1577 continuous-mode transmitter and 1270nm burst-mode receiver.

The transmitter section employs an EML 1577nm laser and is a class 1 laser compliant according to International Safety Standard IEC-60825-1. The receiver section employs an integrated 1270nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

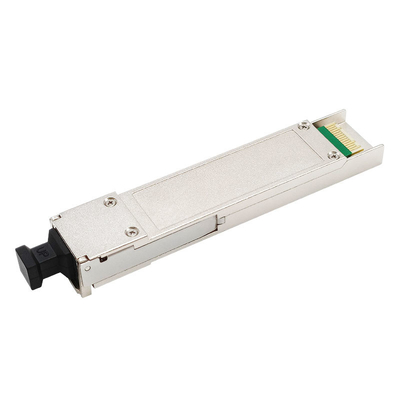

It adopts XFP Package with SC/UPC receptacle connector. Power supply is single +3.3 Voltage.

Digital diagnostics functions are available, as specified in SFF-8472,which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.

Specification

Features

• XFP Package
• Single Power Supply +3.3 Voltage
• Single Fiber Bi-Directional SC/UPC receptacle
• 1577nm continuous-mode 9.983Gb/s DFB EML transmitter
• 1270nm burst-mode 2.488Gb/s APD receiver
• SFP electrical interface
• 2-wire interface for integrated Digital Diagnostic monitoring
• Operating temperature range: 0 °C ~+70 °C
• ROHS Compliant and lead free

Application

• N2a XGPON OLT

Standards

• Complies with INF-8077i
• Complies with ITU-T G.987.2
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11

Ordering Information of our XGPON OLT Transceivers
