Product Details:
|
| Item Name: | XG-PON OLT SFP+ Transceiver | Type: | XG-PON OLT |
|---|---|---|---|
| Standards: | N2a Class | Speed(Downstream/Upstream): | 9.953Gbps/2.488Gbps |
| Wavelength: | TX1577nm/RX1270nm | Connector: | SC UPC |
| Components: | EML DFB+APD | DDM: | Supported |
| Keywords: | XGPON OLT N2a SFP+ Transceiver | ||
| High Light: | 1270nm SFP+ Transceiver Module,1577nm SFP+ Transceiver Module,XG PON OLT |
||
XGPON OLT SFP+ Transceiver
Compliant with ITU-T G.987.2,Class N2a
Single fiber wdm Transceiver
9.953Gb/s downstream and 2.488Gb/s upstream
RoHS,CE,FCC,REACH
Description

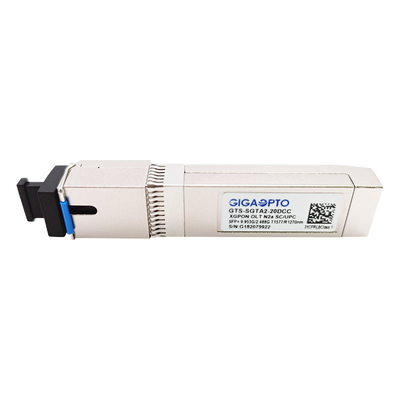

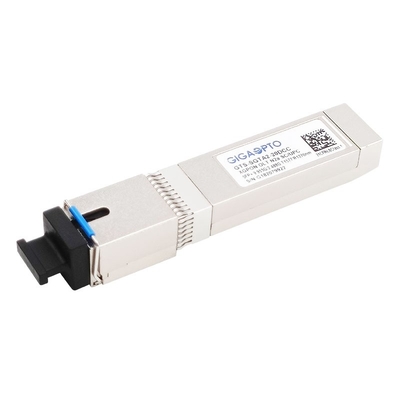

Gigaopto’s GTS-SGTA2-20DCC XGPON OLT N2a SFP+ SCUPC Optical Transceiver SFP+ Module is designed for the optical line terminal (OLT) of XGPON with 9.953Gbps in downstream and 2.488Gbps in upstream by using 1577 continuous-mode transmitter and 1270nm burst-mode receiver.
The transmitter section uses an EML 1577nm laser and is a class 1 laser compliant according to International Safety Standard IEC-60825-1. The receiver section uses an integrated 1270nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
The module could implement DDM function. It could be used at key locations in optical networks.
Specification
| Item Name | XGPON OLT SFP | Form Factor | SFP+ |
| Type | XGPON OLT | ODN Class | N2a |
| Distance | 20km | Connector | SC/UPC Simplex |
| Product Category | PON SFP | Digital Diagnostic | Yes |
| Compatibility | Generic | Environment | Operating: -5°C to 70°C |
| Warranty Time | 3-Year | storage:-40~85°C | |
| Bit Rate TX | 9.953Gbps | Bit Rate RX | 2.488Gbps |
| Wavelength (TX) | 1577nm | Wavelength (RX) | 1270nm |
| Power Consumption | <1.8 W | Total Supply Current | <550mA |
| Transmitter Type | DFB EML laser | Receiver Type | APD |
| TX Power (dBm) | 4~8dBm | Rx Sensitivity | < -29.5dBm |
| Extinction Ratio | >8.2dB | Overload | >-9.0dBm |
| Protocols | ITU-T G.987.2 , SFF-8472 | ||
Features:
Applications
Standards
Ordering Information of our XGPON OLT Transceivers:
| P/N | Description | Form Factor | Bit Rate (Gb/s) | Wavelength (nm) | Class | Tx/Rx Type | Tx Power | Rx Sensitivity | Interface | Temperature |
| GTS-SGTA2-20DCB | XG-PON OLT Transceiver | SFP+ | TX 9.953G/RX 2.488G | TX1577nm/RX1270nm | N1 | EML/APD | 2~6dBm | -27.5dBm | SC/UPC | -5°C to 70°C |
| GTS-SGTA2-20DCC | XG-PON OLT Transceiver | SFP+ | TX 9.953G/RX 2.488G | TX1577nm/RX1270nm | N2a | EML/APD | 4~8dBm | -29.5dBm | SC/UPC | -5°C to 70°C |
| GTX-SGTA2-20DCB | XG-PON OLT Transceiver | XFP | TX 9.953G/RX 2.488G | TX1577nm/RX1270nm | N1 | EML/APD | 2~6dBm | -27.5dBm | SC/UPC | -5°C to 70°C |
| GTX-SGTA2-20DCC | XG-PON OLT Transceiver | XFP | TX 9.953G/RX 2.488G | TX1577nm/RX1270nm | N2a | EML/APD | 4~8dBm | -29.5dBm | SC/UPC | -5°C to 70°C |
