Product Details:
|
| Form Factor: | SFP | Speed: | 1000Mb/s |
|---|---|---|---|
| Reach: | 550m Over OM2 MMF | Centre Wavelength: | 850nm |
| LD Type: | VCSEL | Environment: | Industrial -40 To 85°C |
| Applications: | Gigabit Ethernet, 1G Fiber Channel | ||
| High Light: | 1.25Gbps SFP 550m OM2 MMF Industrial Optical Transceiver, 1.25G SFP 850nm 550m IND Fiber Optic Module | ||

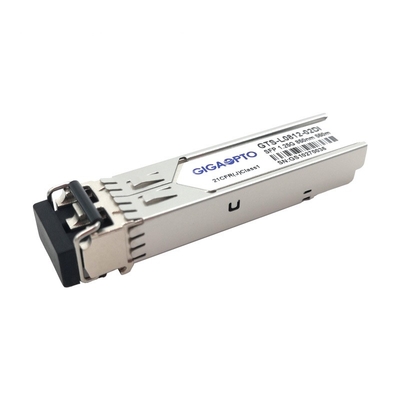

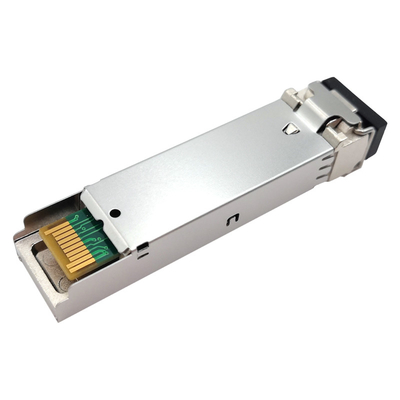

Cisco Compatible 1000BASE-SX SFP 1.25Gbps Transceiver Module Industrial 850nm 550m MMF Multi-Mode DOM Duplex LC
Description
The GIGAOPTO's GTS-L0812-02DI 1000BASE-SX SFP transceiver is a high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and 550m transmission distance with multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. The Industrial SFP transceiver is suitable for short reach Gigabit Ethernet and 1G fiber channel application in harsh environments. The full-duplex SFP transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 1Gbps data rate.
The 1000BASE-SX SFP transceivers are compatible with the IEEE 802.3z 1000BASE-SX standard, and comply with Multi-Source Agreement (MSA) and SFF-8472 specification.
Specification
| Compatible Brand | CISCO | Compatible PN | GLC-SX-MM-RGD |
| Product Packaging | SFP | Data Transfer Rate | 1.063~1.25Gbps |
| Optical Receptacle Type | Dual LC | Cable Length | 550m (1,804 ft) over OM2 |
| Digital Diagnostic Monitoring | Yes | Fiber Mode | Multi-Mode Fiber (MMF) |
| Power Budget | 7.5dB | Operating Case Temperature |
Industrial -40 to 85°C (-40 to 185°F) |
| Center Wavelength | 850nm | Supply Voltage | 3.30V |
| Power Consumption | <1W | Icc | 300mA |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN photodiode |
| Output Average Power | -9.5 ~ - 3dBm | RX Sensitivity | < -18dBm |
| Extinction Ratio(ER) | >9dB | Saturation Power | >-3dBm |
| Protocols | IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant | ||
Features
Application
Ordering Information
| P/N | Description | Speed | Wavelength | Reach | Connector | Temp. |
| GTS-T0012-10I-A | 1000BASE-T SFP Copper | 1.25Gbps | / | 100m | RJ-45 | -40~85℃ |
| GTS-L0812-02DI | 1000BASE-SX SFP | 1.25Gbps | 850nm | 550m over OM2 | Dual LC | -40~85℃ |
| GTS-L1312-10DI | 1000BASE-LX SFP | 1.25Gbps | 1310nm | 10km | Dual LC | -40~85℃ |
| GTS-L1312-40DI | 1000BASE-EX40 SFP | 1.25Gbps | 1310nm | 40km | Dual LC | -40~85℃ |
| GTS-L1512-80DI | 1000BASE-ZX SFP | 1.25Gbps | 1550nm | 80km | Dual LC | -40~85℃ |
Digital Diagnostic Memory Map
Mechanical Specifications (Unit: mm)
