Product Details:
|
| Package: | SFP | Max Data Rate: | 1.25Gbps |
|---|---|---|---|
| RX Sensitivity: | < -32dBm | Distance: | 100km |
| Media: | Single-Mode Fiber | Overload: | >-3 DBm |
| Transmitter Type: | DFB 1550nm | Average Output Power: | 0~5dBm |
| Keywords: | 1G SFP Module 1550nm 100km, 1000BASE-EZX SFP Transceiver SMF, 1.25G SFP Optical Transceiver Module |

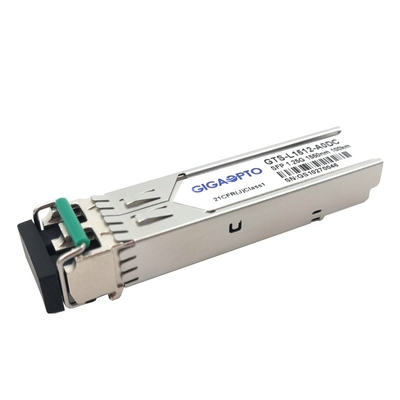

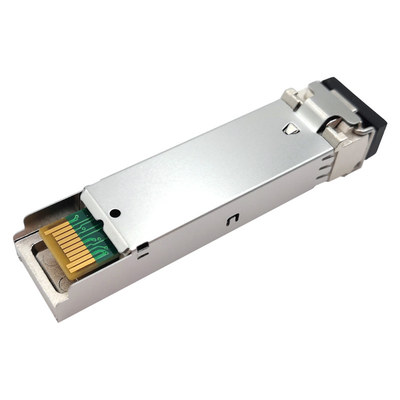

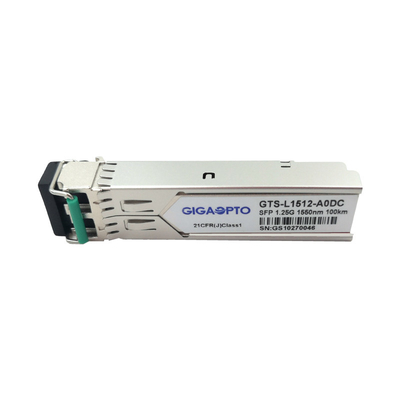

Cisco Compatible 1000BASE-EZX SFP SMF 1550nm 100km DOM Duplex LC Optical Transceiver
Description
The GIGAOPTO's GTS-L1512-A0DC is a small form factor pluggable transceiver that supports dual data-rate of 1.25Gbps and 100km transmission distance with single-mode fiber operating at a nominal wavelength of 1550nm. The SFP module is of low power consumption and hot-swappable, ideal for serial optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All SFP transceiver is ClassⅠ FDA and IEC60825-1 Laser Safety Compliant, and compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Specification
| Compatible Brand | CISCO | Compatible PN | GLC-EZX-SM-100 |
| Form Type | SFP | Data Rate | 1.25Gbps |
| Connector | LC Duplex | Max Link Length | 100km |
| Diagnostic Monitoring | Supported | Fibre Type | SMF |
| Center Wavelength | 1550nm | Operating Temperature |
C-Temp I-Temp |
| Optical Components | DFB 1550nm | Power Supply Voltage | 3.3V |
| TX Optical Power | 0 to 5dBm | Current | 300mA |
| Extinction Ratio | >9dB | PD Type | APD |
| Receiver Saturation | >-3dBm | Sensitivity | < -32dBm |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | ||
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator
according to the table.
| Distance | ≤15km | ≤35km | ≤55km |
| Attenuator | 15dB | 10dB | 5dB |
Features
COM: 0°C~70°C
IND: -40°C~85°C
Application
Compatibility
Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer a 3-year warranty.
For this (1000BASE-EZX SFP 1550nm 100km), please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.
| Compatible Brand | Compatible P/N | Compatible Brand | Compatible P/N |
| GIGAOPTO | GTS-L1512-A0DC | HPE H3C | JD103A |
| CISCO | GLC-EZX-SM-100 | H3C | SFP-GE-LH100-SM1550 |
| Juniper | SFP-1GE-EZX-100 | Dell | SFP-EZX-100 |
| Arista | SFP-1G-EZX-100 | Extreme | 10064H |
| Brocade | E1MG-EZX-120 | SMC Networks | SMC1GSFP-ZX |
Ordering Information
| Part Number | Description | Data Rate | Wavelength | Reach | Media | Interface |
| GTS-L0812-02DC | 1000BASE-SX SFP | 1250M | 850nm |
550m@OM2 275m@OM1 220m@FDDI |
MMF | LC |
| GTS-L1312-M2DC | 1000BASE-SX SFP | 1250M | 1310nm | 2km@OM4 | MMF | LC |
| GTS-L1312-10DC | 1000BASE-LX SFP | 1250M | 1310nm | 10km@SMF | SMF | LC |
| GTS-L1312-20DC | 100BASE-LH SFP | 1250M | 1310nm | 20km | SMF | LC |
| GTS-L1512-40DC | 1000BASE-EX SFP | 1250M | 1550nm | 40km | SMF | LC |
| GTS-L1312-40DC | 1000BASE-EX SFP | 1250M | 1310nm | 40km | SMF | LC |
| GTS-L1512-80DC | 1000BASE-ZX SFP | 1250M | 1550nm | 80km | SMF | LC |
| GTS-L1512-A0DC | 1000BASE-EZX SFP | 1250M | 1550nm | 100km | SMF | LC |
| GTS-L1512-C0DC | 1000BASE-EZX SFP | 1250M | 1550nm | 120km | SMF | LC |
| GTS-L1512-F0DC | 1000BASE-EZX SFP | 1250M | 1550nm | 160km | SMF | LC |
